1030 MHz SAW Filter
In stock
Model
AE1030SB1177
1030 MHz SAW Filter
1030 MHz SAW Filter
GENERAL CHARACTERISTICS
| Center Frequency | 1030 MHz |
|---|---|

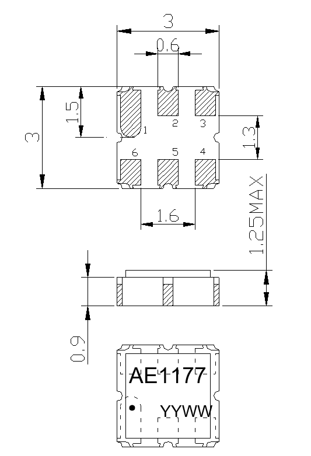

| Dimensions | 3.0 x 3.0 x 1.25 mm |
| Style | SMT |
| Band Width | 10 MHz |
| Insertion Loss | 4.0 dB Max |
| Pass Band | 1025 - 1035 MHz |
| Rejection (high side) | 40 dB Min @ 1250 - 1600 MHz |
| Rejection (low side) | 53 dB Min @ 500 - 850 MHz |
