11 MHz Low Pass Filter
In stock
Model
AE11L9374
11 MHz Low Pass Filter
11 MHz Low Pass Filter
GENERAL CHARACTERISTICS
| Pass Band | 0-11 MHz |
|---|---|
| Rejection Frequency | 50 dB Min @ 21-500 MHz |
| Connector Type | N-Type (F) |
| Return Loss | 15 dB Min |
| Insertion Loss | 0.5 dB Max |
| Power Handling | 500 W CW |

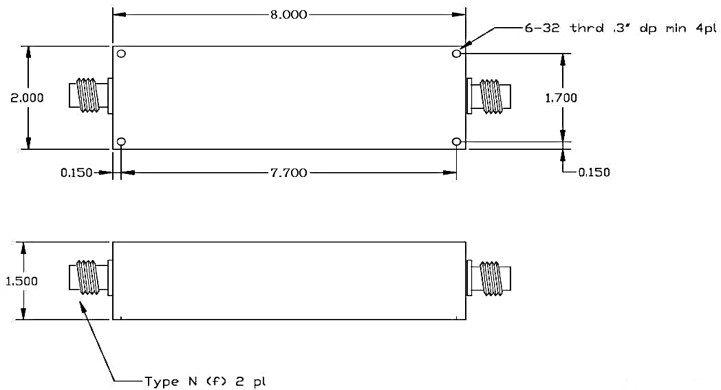

| Dimensions | 8.0 x 2.0 x 1.5 in. |
| Cutoff Frequency | 11 MHz |
