123 MHz LC Bandpass Filter
In stock
Model
AE123LB12032
123 MHz LC Bandpass Filter
123 MHz LC Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 123 MHz |
|---|---|

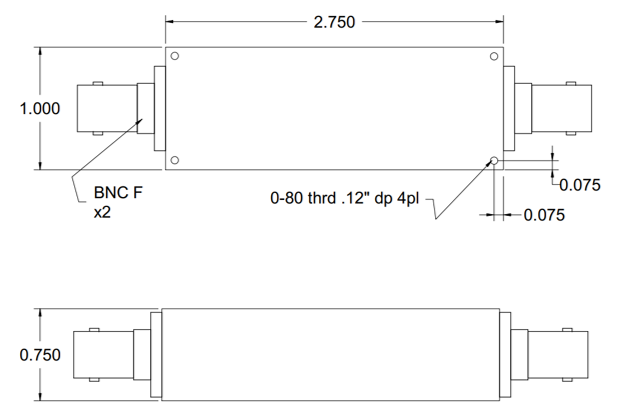

| Dimensions | 2.75 x 1.0 x 0.75 in. |
| Power Handling | 10 W CW |
| Connector Type | BNC (F) |
| Band Width | 2 MHz |
| Insertion Loss | 5.0 dB Max |
| Pass Band | 122 - 124 MHz |
| Rejection (high side) | 80 dB Min @ 140 MHz |
| Rejection (low side) | 80 dB Min @ 110 MHz |
| Return Loss | 15 dB Min |
