127.66 MHz LC Bandpass Filter
In stock
Model
AE127B11021-SF
127.66 MHz LC Bandpass Filter
127.66 MHz LC Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 127.66 MHz |
|---|---|

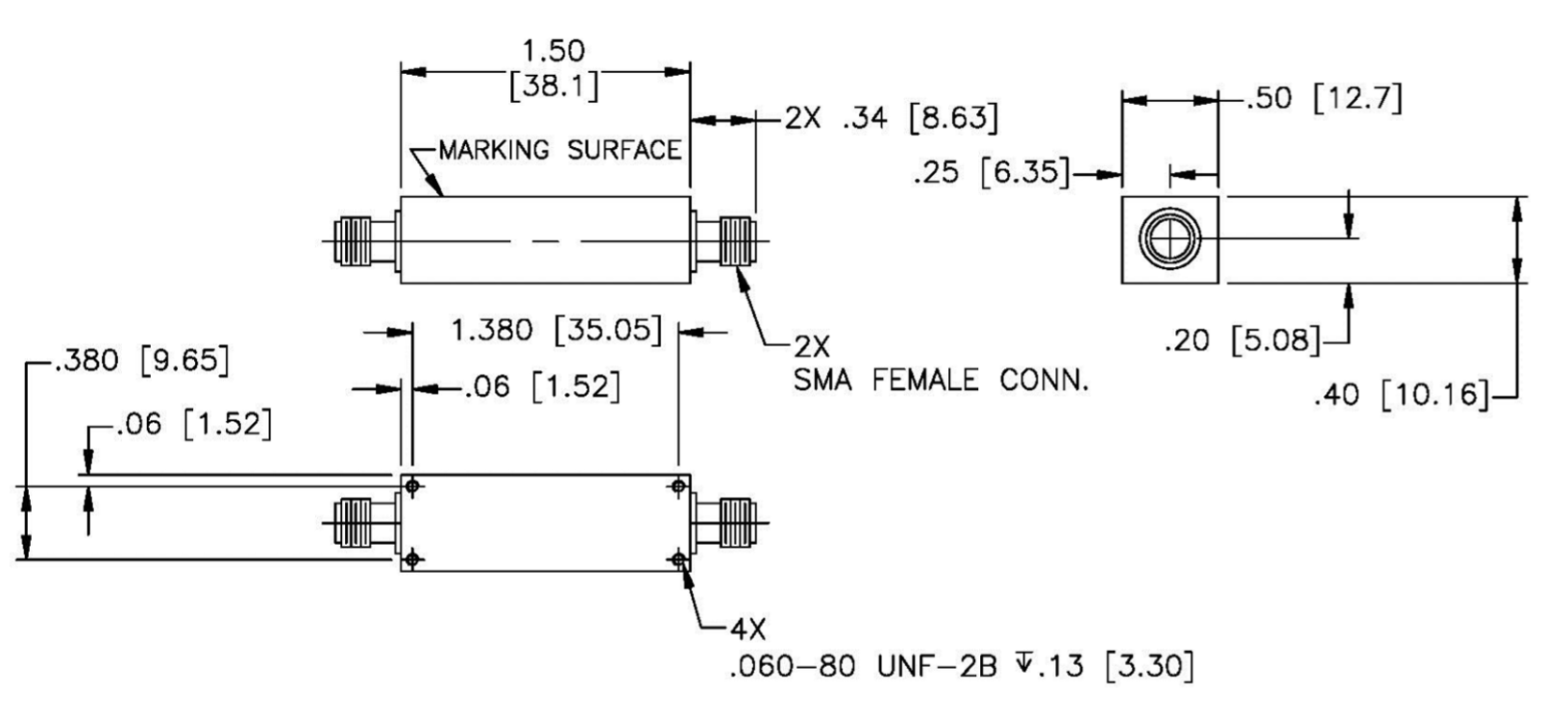

| Dimensions | 1.50 x 0.50 x 0.40 in. |
| Power Handling | 10 W CW |
| Connector Type | SMA (F) |
| Insertion Loss | 4.0 dB Max |
| Pass Band | 122.66 - 132.66 MHz Min |
| Rejection (high side) | 70 dB Min @156.66 MHz |
| Rejection (low side) | 70 dB Min @ 98.66 MHz |
