1307.50 MHz Ceramic Bandpass Filter
In stock
Model
AE1307CB1886
1307.50 MHz Ceramic Bandpass Filter
1307.50 MHz Ceramic Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 1307.50 MHz |
|---|---|

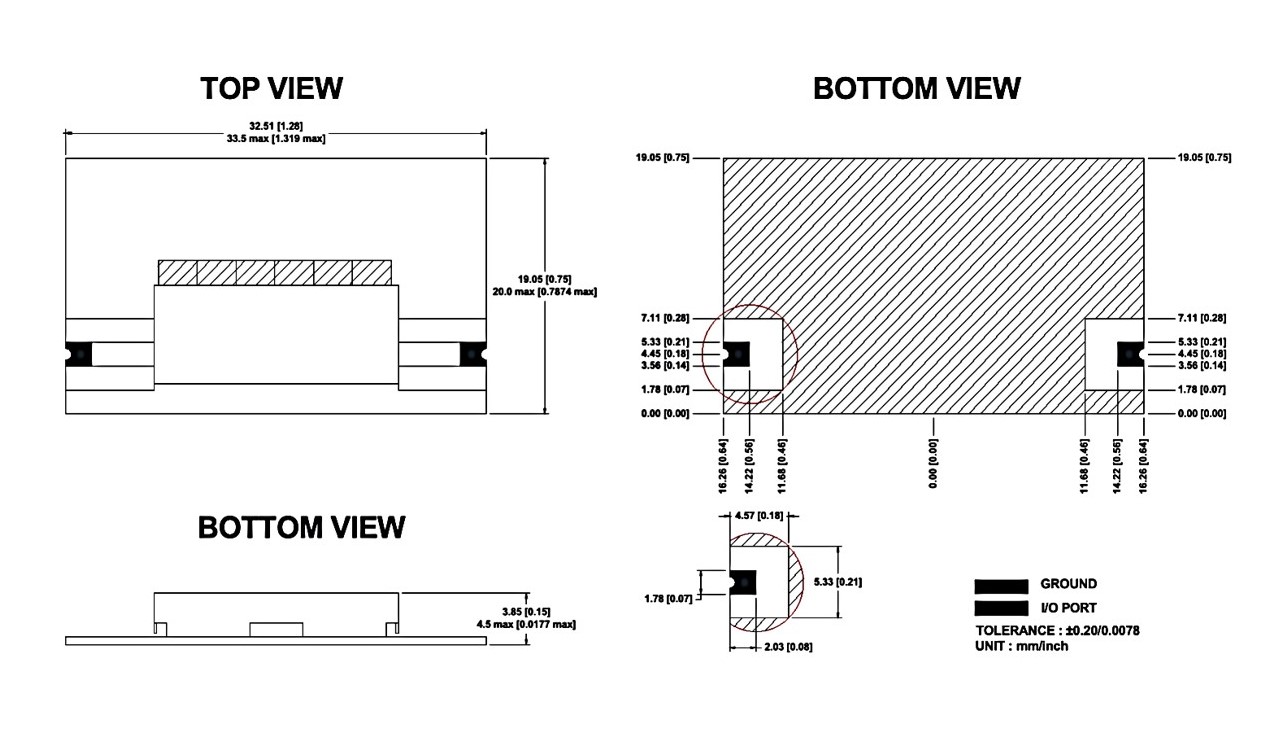

| Dimensions | 1.28 x 0.75 x 0.15 in. |
| Power Handling | 1 W CW Max |
| Style | SMT |
| Band Width | 185 MHz |
| Insertion Loss | 1.7 dB Max |
| Pass Band | 1215 - 1400 MHz |
| Rejection (high side) | 30 dB Min @ 1100 - 1550 MHz |
| Rejection (low side) | 30 dB Min @ 1100- 1550 MHz |
| Return Loss | 15 dB Min |
