140 MHz SAW Filter
140 MHz SAW Filter
GENERAL CHARACTERISTICS
| Center Frequency | 140 MHz |
|---|---|

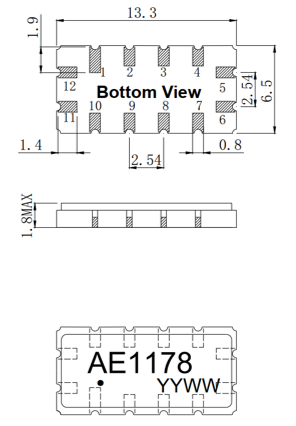

| Dimensions | 13.30 x 6.50 x 1.80 mm |
| Power Handling | 10 dBm |
| Style | SMT |
| Band Width | 0.3 MHz |
| Insertion Loss | 9.0 dB Max |
| Pass Band | 139.85 - 140.15 MHz |
| Rejection (high side) | 35 dB Min @ 150 MHz |
| Rejection (low side) | 35 dB Min @ 130 MHz |
