144.510 MHz Crystal Bandpass Filter
In stock
Model
AE144.51CR376
144.510 MHz Crystal Bandpass Filter
144.510 MHz Crystal Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 144.510 MHz |
|---|---|

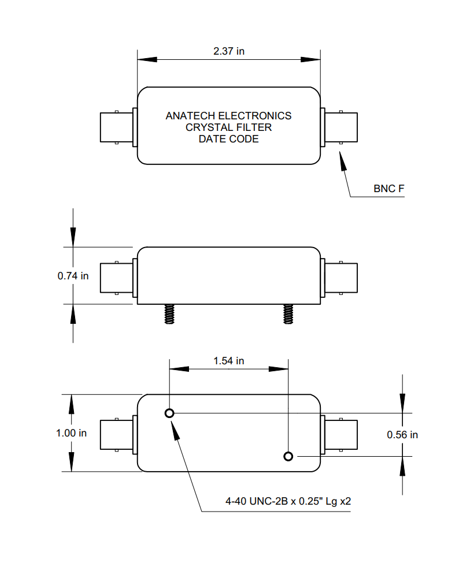

| Dimensions | 2.37 x 1.0 x 0.74 in. |
| Power Handling | +0 dBm Max |
| Connector Type | BNC (F) |
| Insertion Loss | 7.50 dB Max |
| Pass Band | See Datasheet |
| Rejection (high side) | See Datasheet |
| Rejection (low side) | See Datasheet |
