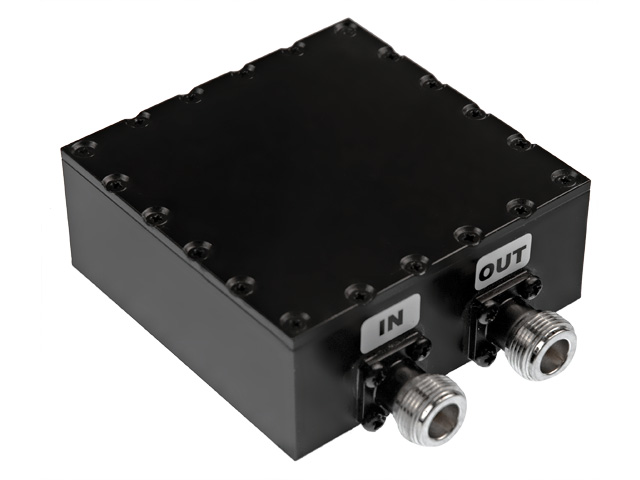

1500 MHz Cavity Band Pass Filter
Out of stock
Model
AE1500B1358
1500 MHz Cavity Band Pass Filter
1500 MHz Cavity Band Pass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 1500 MHz |
|---|---|
| Dimensions | 2.42 x 1.81 x 1.65 Inches |
| Power Handling | 5 W CW |
| Connector Type | SMA (F) |
| Band Width | 90 MHz |
| Insertion Loss | <2.0 dB |
| Pass Band | 1455-1545 MHz |
| Rejection (high side) | >40 dB @ 1580 MHz |
| Rejection (low side) | >40 dB @ 1420 MHz |
| Return Loss | >18 dB |
