1616-1626.5 MHz Cavity Bandpass Filter
In stock
Model
AE1621B11345-NF
1616-1626.5 MHz Cavity Bandpass Filter
1616-1626.5 MHz Cavity Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 1621.25 MHz |
|---|---|

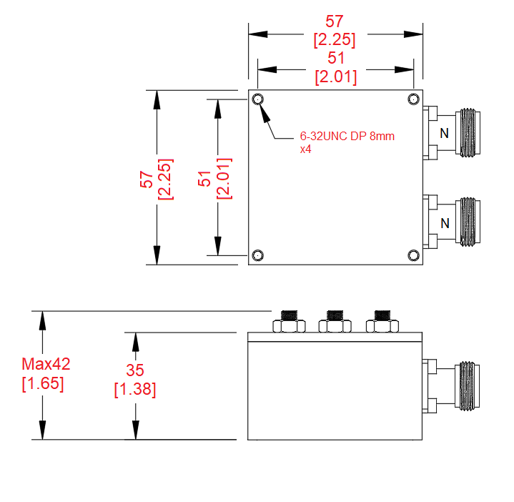

| Dimensions | 2.25 x 2.25 x 1.65 in. |
| Power Handling | 20 W |
| Connector Type | N-Type Female |
| Band Width | 10.5 MHz |
| Insertion Loss | 1.0 dB Max |
| Pass Band | 1616-1626.5 MHz |
| Rejection (high side) | See Datasheet |
| Rejection (low side) | See Datasheet |
| Return Loss | 15 dB Min |
