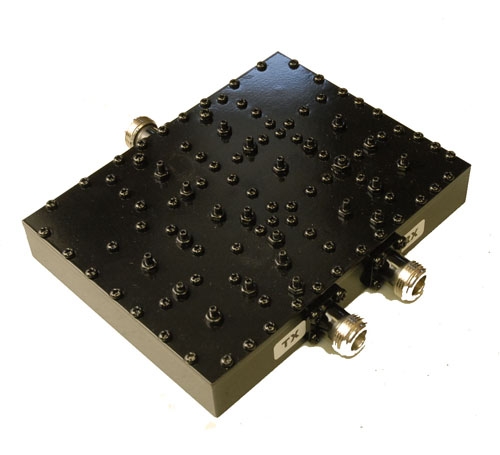

1710-1755 MHz / 2110-2155 MHz Cavity Duplexer with N-type connectors
In stock
Model
AE1732-2132DB5295-N
1710-1755 MHz / 2110-2155 MHz Cavity Duplexer with N-type connectors
1710-1755 MHz / 2110-2155 MHz Cavity Duplexer with N-type connectors
GENERAL CHARACTERISTICS
| Dimensions | 4.125" x 2.00" x 1.50" |
|---|---|
| Return Loss | > 15 dB |
| Power Handling | 40 W |
| Insertion loss (dB) | 1 dB |
| Band 2 | 2132.5 MHz |
| Band 1 | 1732.5 MHz |
| Band 2 Bandwidth | 2110-2155 MHz |
| Band 1 Bandwidth | 1710-1755 MHz |
| Isolation | 70 dB Min |
