191 MHz LC Bandpass Filter
191 MHz LC Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 191 MHz |
|---|---|

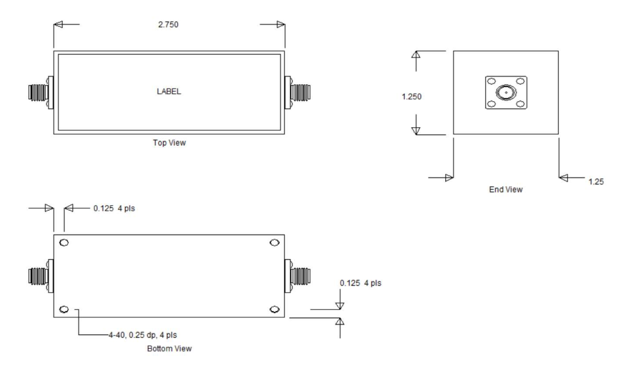

| Dimensions | 2.75 x 1.25 x 1.25 in. |
| Power Handling | 10 W CW |
| Connector Type | SMA (F) |
| Band Width | 6 MHz |
| Insertion Loss | 1.0 dB Max |
| Pass Band | 188 - 194 MHz |
| Rejection (high side) | 20 dB Min @ 212 MHz |
| Rejection (low side) | 20 dB Min @ 170 MHz |
| Return Loss | 15 dB Min |
