2017.5 MHz Narrow Bandpass Filter
In stock
Model
AE2017B12350
2017.5 MHz Narrow Bandpass Filter
2017.5 MHz Narrow Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 2017.5 MHz |
|---|---|

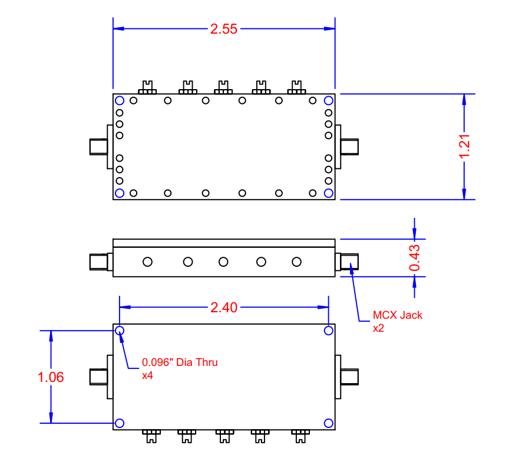

| Dimensions | 2.55 x 1.21 x 0.43 in. |
| Power Handling | 20 W CW |
| Connector Type | MCX Jack |
| Insertion Loss | 5.0 dB Max |
| Return Loss | 15 dB Min |
