2030 - 2114 MHz / 2284 - 2291 MHz Cavity Duplexer
In stock
Model
AE2072-2287DB5534
2030 - 2114 MHz / 2284 - 2291 MHz Cavity Duplexer
2030 - 2114 MHz / 2284 - 2291 MHz Cavity Duplexer
GENERAL CHARACTERISTICS

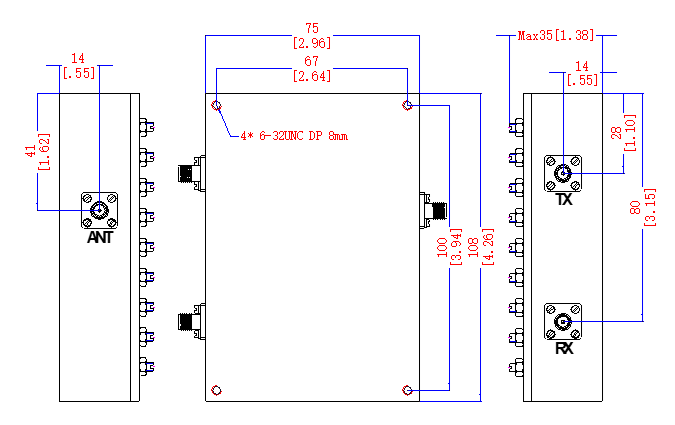

| Dimensions | 4.26 x 2.96 x 1.38 in. |
|---|---|
| Return Loss | 18 dB Min |
| Power Handling | 60 W Average Max |
| Insertion loss (dB) | 1.0 dB Max |
| Band 2 | 2284 - 2291 MHz |
| Band 1 | 2030 - 2114 MHz |
