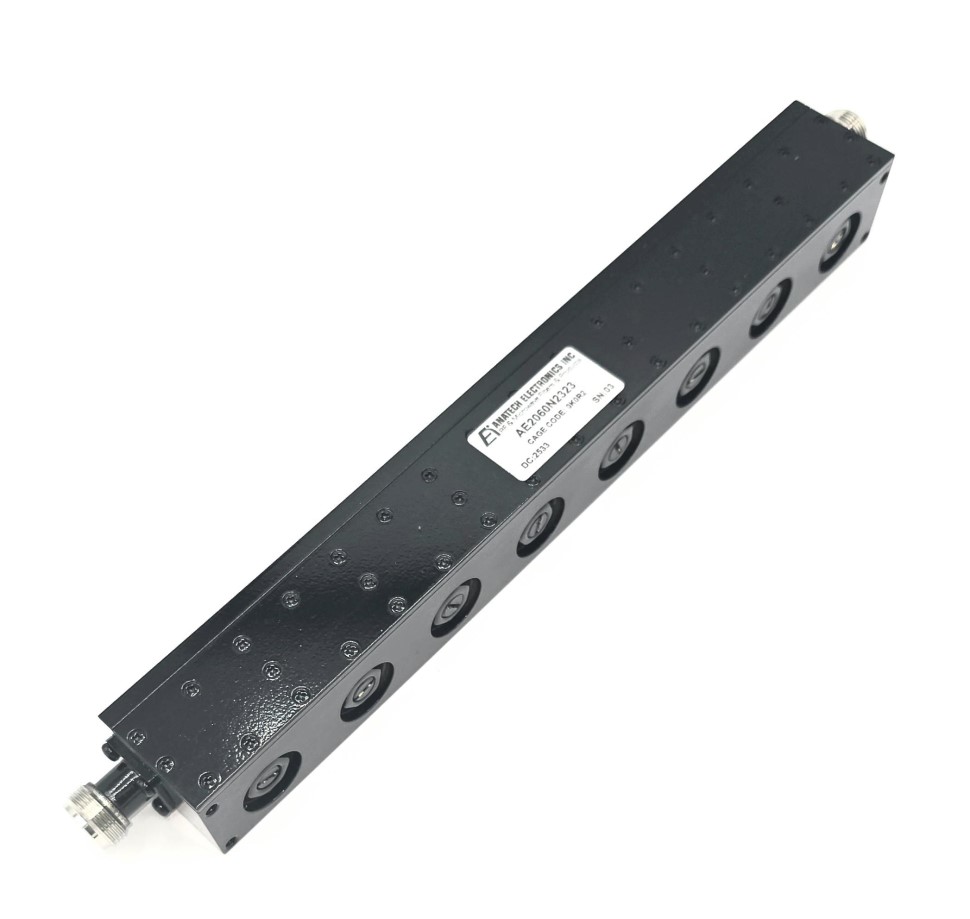

2031-2081 MHz Cavity Notch/Band Stop Filter
In stock
Model
AE2060N2323
2031-2081 MHz Cavity Notch/Band Stop Filter
2031-2081 MHz Cavity Notch/Band Stop Filter
GENERAL CHARACTERISTICS
| Power Handling | 60 W Max |
|---|---|
| Connector Type | N-Type Female |
| High Side Passband Insertion Loss | 1.0 dB Max |
| Low Side Passband Insertion Loss | 1.0 dB Max |
| Notch Band | 2039 - 2081 MHz |
| Notch Center Frequency | 2060 MHz |
| Passband Above Notch | 2110 - 2556 MHz |
| Passband Below Notch | 1000 - 2000 MHz |
| Rejection in Bandwidth | 80 dB |
| Return Loss | 0.5 dB |
