2072.5 MHz Cavity Bandpass Filter with SMA (F) connectors for Outdoor
In stock
Model
AB2072B1327-SF -O
2072.5 MHz Cavity Bandpass Filter with SMA (F) connectors for Outdoor
2072.5 MHz Cavity Bandpass Filter with SMA (F) connectors for Outdoor
GENERAL CHARACTERISTICS
| Center Frequency | 2072.5 MHz |
|---|---|

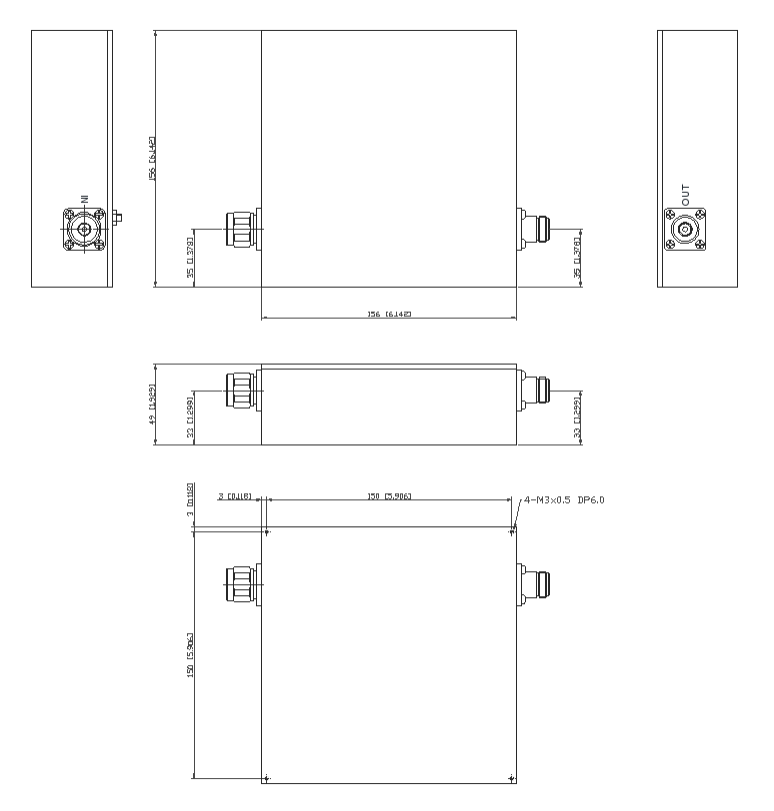

| Dimensions | 6.14 x 6.14 x 1.92 inches |
| Power Handling | 750 W |
| Connector Type | N-Type (M/F) |
| Band Width | 95 MHz |
| Insertion Loss | 0.45 dB Max |
| Pass Band | 2025 - 2120 MHz |
| Rejection (high side) | 60 dB Max @ 2300 - 16000 MHz |
| Rejection (low side) | 70 dB Max @ 2200 - 2300 MHz |
