2100 MHz Ceramic Bandpass Filter
In stock
Model
AM2100B1122
2100 MHz Ceramic Bandpass Filter
2100 MHz Ceramic Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 2100 MHz |
|---|---|

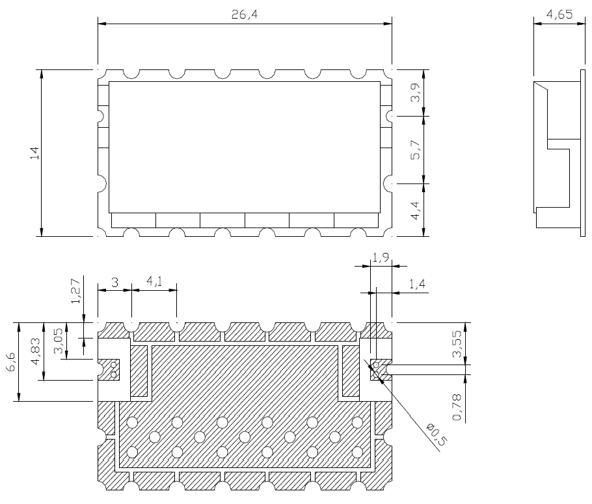

| Dimensions | 26.4 x 14 x 4.65 mm |
| Power Handling | 1 W |
| Style | SMT |
| Band Width | 240 MHz |
| Insertion Loss | 3.0 dB Max |
| Pass Band | 1980 - 2200 MHz |
| Rejection (high side) | See Datasheet |
| Rejection (low side) | See Datasheet |
| Return Loss | See Datasheet |
