2245 MHz Cavity Bandpass Filter
In stock
Model
AE2245B12324
2245 MHz Cavity Bandpass Filter
2245 MHz Cavity Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 2245 MHz |
|---|---|

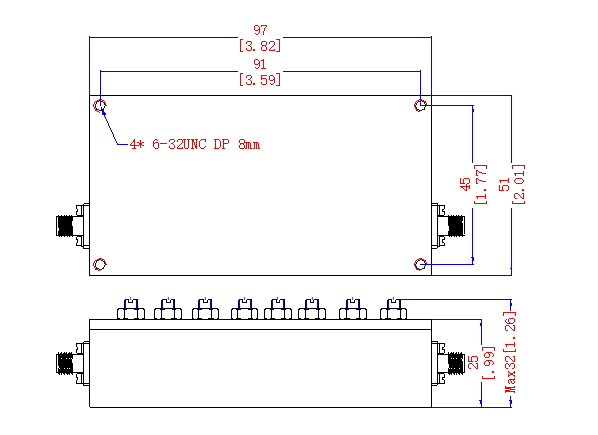

| Dimensions | 3.82 x 2.01 x 1.26 in. |
| Power Handling | 10 W CW Max |
| Connector Type | SMA (F) |
| Band Width | 90 MHz |
| Insertion Loss | 1.8 dB Max |
| Pass Band | 2200 - 2290 MHz |
| Rejection (high side) | 40 dB Min @ 2500 MHz |
| Rejection (low side) | 20 dB Min @ 2192 MHz |
| Return Loss | 20 dB Min |
