2250 MHz Cavity Bandpass Filter
In stock
Model
AE2250B1153
2250 MHz Cavity Bandpass Filter
2250 MHz Cavity Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 2250 MHz |
|---|---|

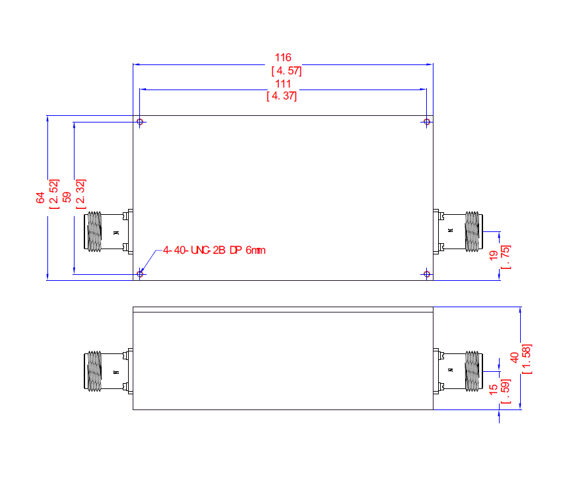

| Dimensions | 4.57 x 2.52 x 1.58 in. |
| Power Handling | 40 W CW |
| Connector Type | N-Type Female |
| Band Width | 100 MHz |
| Insertion Loss | 0.8 dB Max |
| Pass Band | 2200 - 2300 MHz |
| Rejection (high side) | 95 dB Min @ 2400 - 4000 MHz |
| Rejection (low side) | 95 dB Min @ DC - 2120 MHz |
| Return Loss | 19 dB Min |
