30-88 MHz / 180-512 MHz Diplexer
In stock
Model
AE59-310DB5479-NF
30-88 MHz / 180-512 MHz Diplexer
30-88 MHz / 180-512 MHz Diplexer
GENERAL CHARACTERISTICS

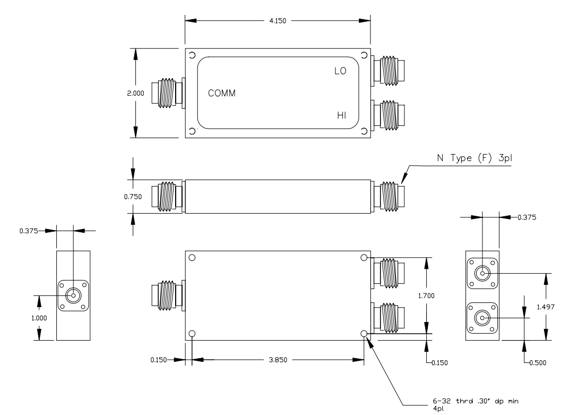

| Dimensions | 4.15 x 2.0 x 0.75 on. |
|---|---|
| Return Loss | 14 dB Min |
| Power Handling | 100 W CW Max |
| Insertion loss (dB) | 0.5 dB Max |
| Band 2 | 180 - 512 MHz |
| Band 1 | 30 - 88 MHz |
| Band 2 Bandwidth | 332 MHz |
| Band 1 Bandwidth | 58 MHz |
| Isolation | 20 dB Min |
