3400 MHz High Pass Filter
In stock
Model
AE3400H9962
3400 MHz High Pass Filter
3400 MHz High Pass Filter
GENERAL CHARACTERISTICS

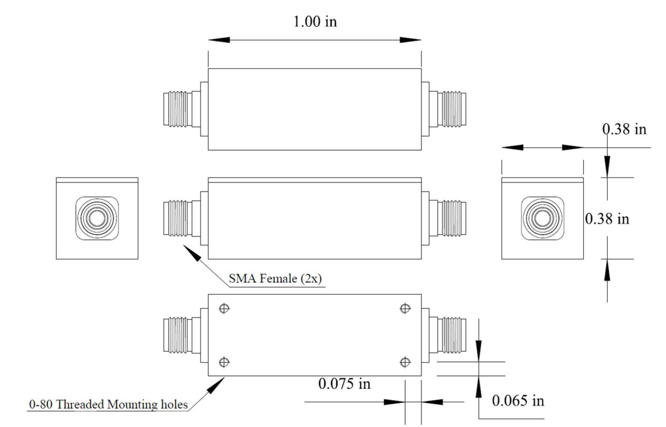

| Dimensions | 1.0 x 0.38 x 0.38 in. |
|---|---|
| Power Handling | 50 W |
| Connector Type | SMA (F) |
| Insertion Loss | 1.5 dB Max |
| Pass Band | 3400 - 10000 MHz |
| Return Loss | 12 dB Min |
| Cutoff Frequency | 3400 MHz |
| Rejection Frequency | 40 dB Min @ 1575 MHz |
