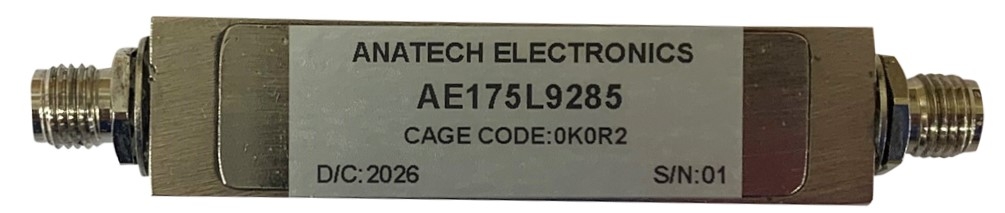

175 MHz Low Pass Filter
In stock
Model
AE175L9285
175 MHz Low Pass Filter
175 MHz Low Pass Filter
GENERAL CHARACTERISTICS
| Pass Band | DC-175 MHz |
|---|---|
| Rejection Frequency | >30 dB @ 200 MHz |
| Connector Type | SMA F |
| Return Loss | 14 dB Min. |
| Insertion Loss | 1.0 dB Max |
| Power Handling | 10 W |
| Dimensions | 2 X 0.5 X 0.4" max |
| Cutoff Frequency | 175 MHz |
