5250 MHz Ceramic Bandpass Filter
In stock
Model
AE5250CB1877
5250 MHz Ceramic Bandpass Filter
5250 MHz Ceramic Bandpass Filter
GENERAL CHARACTERISTICS

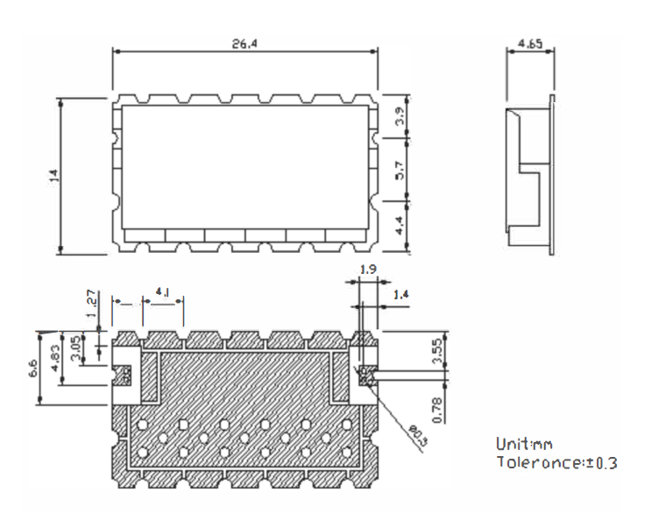

| Dimensions | 26.4 x 14 x 4.65 mm |
|---|---|
| Power Handling | 1 W CW Max |
| Style | SMT |
| Band Width | 300 MHz |
| Insertion Loss | 2.0 dB Max |
| Rejection (high side) | 30 dB Min @ 5550 MHz |
| Rejection (low side) | 50 dB Min @ 4950 MHz |
| Return Loss | See Datasheet |
