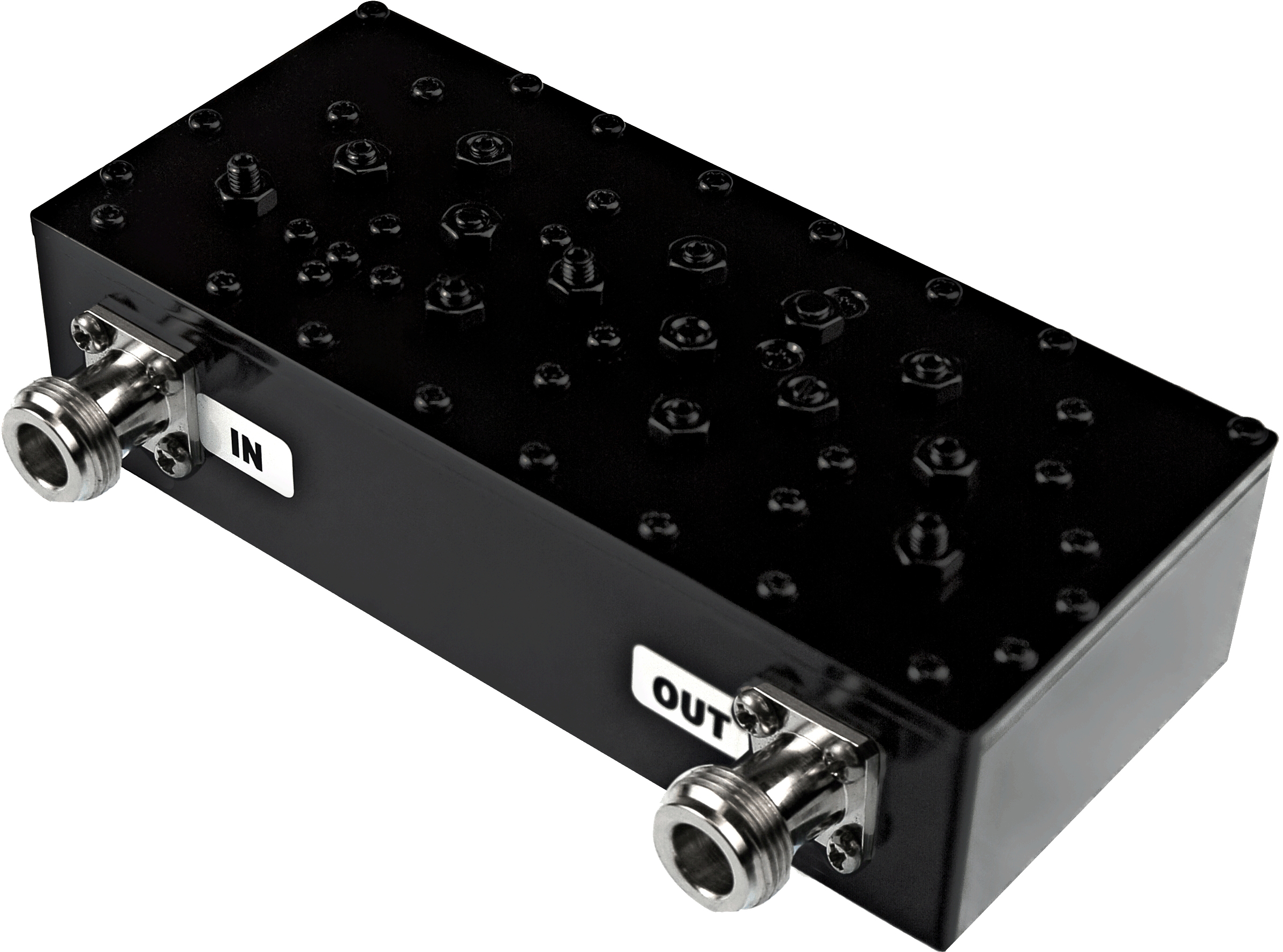

805-859 MHz Cavity Band Pass Filter
Out of stock
Model
AE834B11338
805-859 MHz Cavity Band Pass Filter
805-859 MHz Cavity Band Pass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 834 MHz |
|---|---|
| Dimensions | 5.67 x 2.73 x 2.29 |
| Power Handling | 50 W MAx |
| Connector Type | TNC (F) |
| Band Width | 50 MHz |
| Pass Band | 809-859 MHz |
| Rejection (high side) | >30db > 862MHz |
| Rejection (low side) | >30db @ 862MHz |
| Return Loss | 15 dB Max |
