9400 MHz Cavity Bandpass Filter
In stock
Model
AE9400B12004
9400 MHz Cavity Bandpass Filter
9400 MHz Cavity Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 9400 MHz |
|---|---|

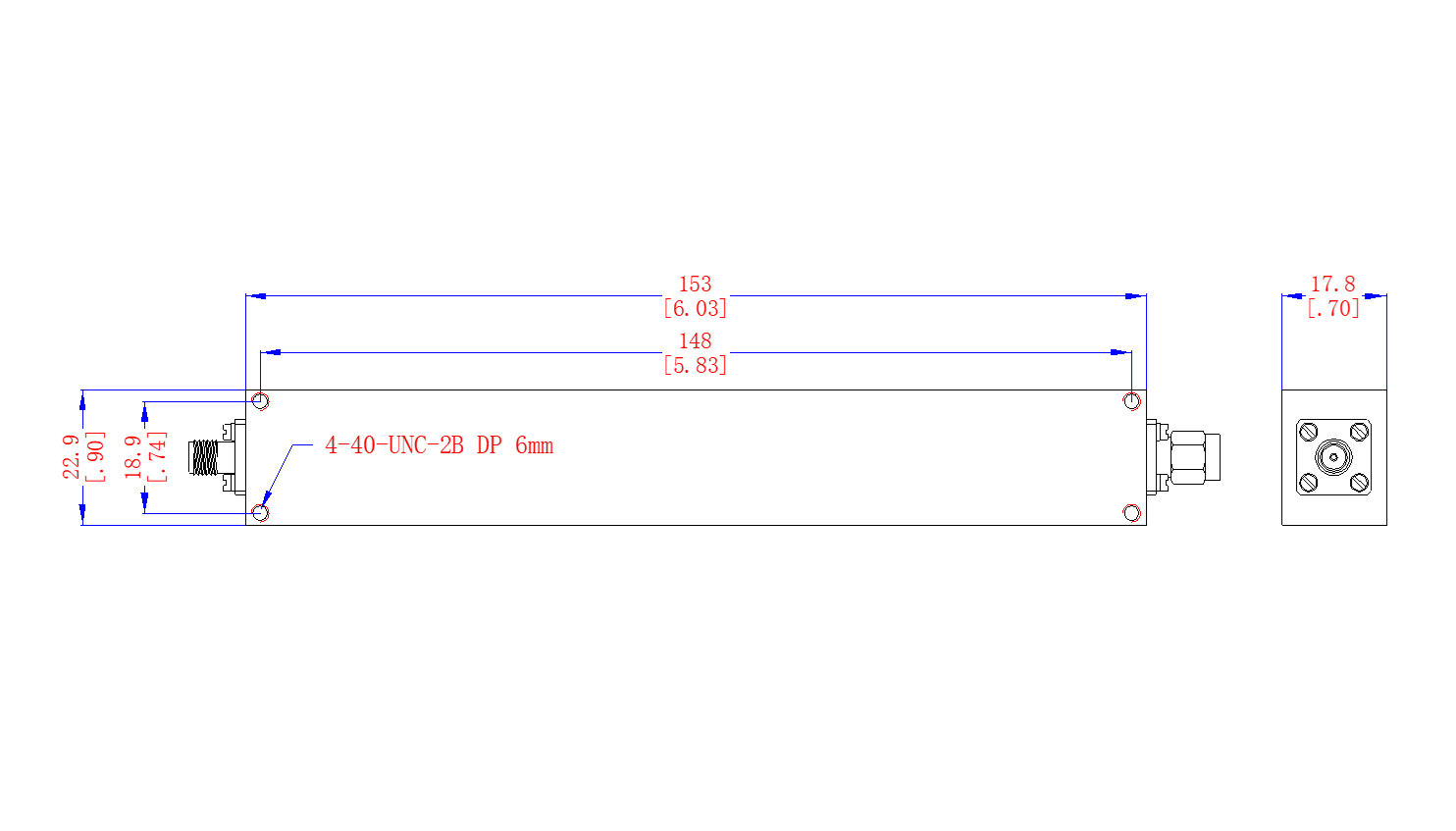

| Dimensions | 6.03 x 0.90 x 0.70 in |
| Power Handling | 100 W (25% duty cycle) |
| Connector Type | TNC Female |
| Insertion Loss | 1.0 dB Max |
| Pass Band | 8300 - 10500 MHz |
| Rejection (high side) | 90 dB Min @ 11500 - 17000 MHz |
| Rejection (low side) | 60 dB Min @ DC - 8000 MHz |
| Return Loss | 15 dB Min |
