944 MHz Cellular Bandpass Filter
In stock
Model
AB944B1026-NF
944 MHz Cellular Bandpass Filter
944 MHz Cellular Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 944 MHz |
|---|---|

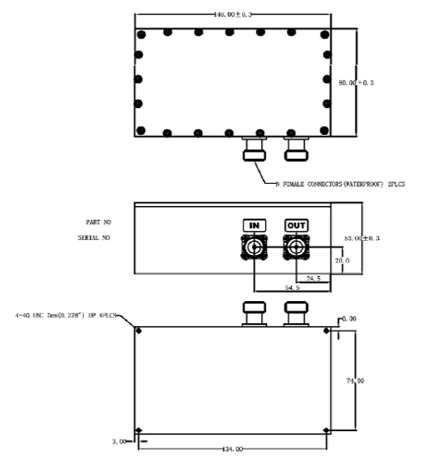

| Dimensions | 5.52 x 3.15 x 2.09 in. |
| Power Handling | 50 W CW |
| Connector Type | N-Type (F) |
| Insertion Loss | 1.5 dB Max |
| Pass Band | 928 - 960 MHz |
| Rejection (high side) | 20 dB Min @ 970 MHz |
| Rejection (low side) | 20 dB Min @ 915 MHz |
| Return Loss | 15 dB Min |
