635 MHz Bandpass Filter
635 MHz Bandpass Filter
GENERAL CHARACTERISTICS
| Center Frequency | 635 MHz |
|---|---|

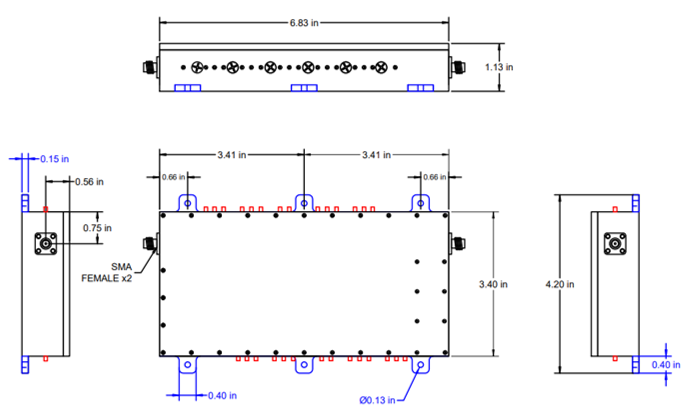

| Dimensions | 6.83 x 3.4 x 1.13 in. |
| Power Handling | 100 - 150 W CW |
| Connector Type | SMA (F) |
| Band Width | 330 MHz |
| Insertion Loss | 1.0 dB Max |
| Pass Band | 470 - 800 MHz |
| Rejection (high side) | 40 dB Min @ 850 - 400 MHz |
| Rejection (low side) | 40 dB Min @ 400 MHz |
| Return Loss | 14 dB Min |
